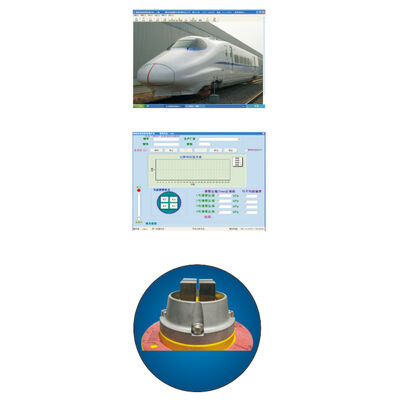

HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HTR |
| 인증 | EN50155, EN45545, GB/T 25119, etc. |
| 모델 번호 | HTR2820 |
| 최소 주문 수량 | 100개 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 카톤 박스, 나무 상자, 것처럼마다 요구합니다 |
| 배달 시간 | 15-50 일, 수량에 의존합니다 |
| 지불 조건 | L/C, T/T, 웨스턴 유니온, 페이팔 |
| 공급 능력 | 1,000 PC / 달 |
제품 상세 정보
| 측정 범위 | 0kPa ~ 110kPa | 측정시간 | 45초(클램핑 포함) |
|---|---|---|---|
| 스프링 압축 거리 | 25mm | 압력 측정 정확도 | ±1.5kPa |
| 강조하다 | Passenger coach grounding device test bench,Railway axle-end spring pressure tester,HTR2820 grounding device test equipment |
||
제품 설명
Product Overview

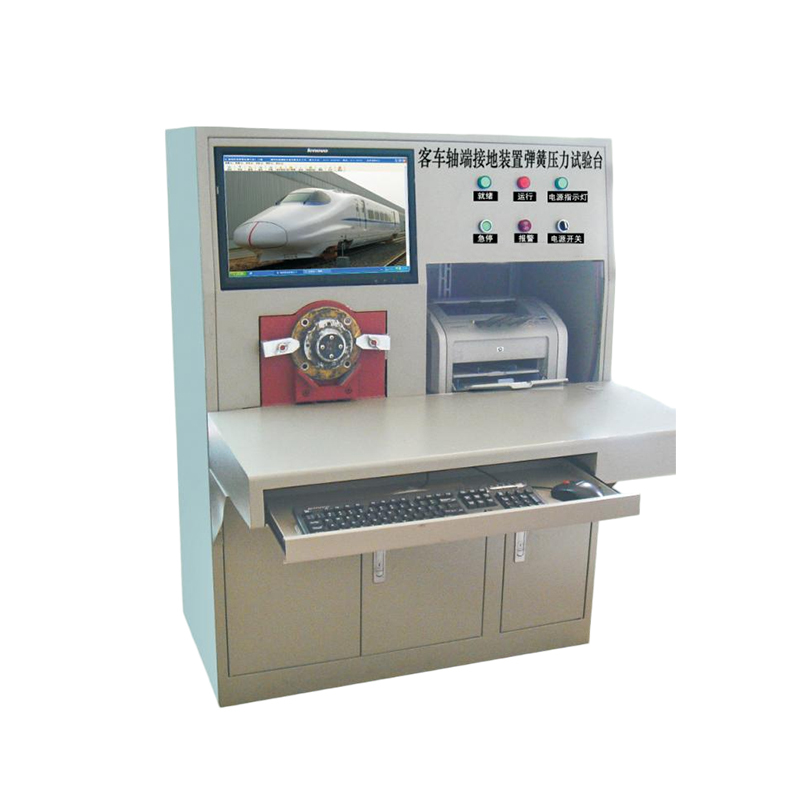

The HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench is a specialized inspection system that integrates pressure sensors and microcomputer control technology. It is specifically designed to detect the spring pressure and average value deviation of the four carbon brushes within a grounding assembly.
The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.
Main Product Features
The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.
Main Product Features
1. This test bench can simultaneously detect 1 grounding body and 4 carbon brush springs, which is unique among domestic similar products, and its detection efficiency is 4 times that of similar products.
2. It features high accuracy, fast measurement speed, and supports data query, printing, storage and real-time transmission to the KMIS system.
3. It can accurately detect and judge the jamming condition of the grounding device.
Main Technical Indicators
| Measuring Range | 0 kPa ~ 110 kPa |
| Measurement Time | 45 s (including clamping) |
| Spring Compression Distance | 25 mm |
| Pressure Measurement Accuracy | ±1.5 kPa |
