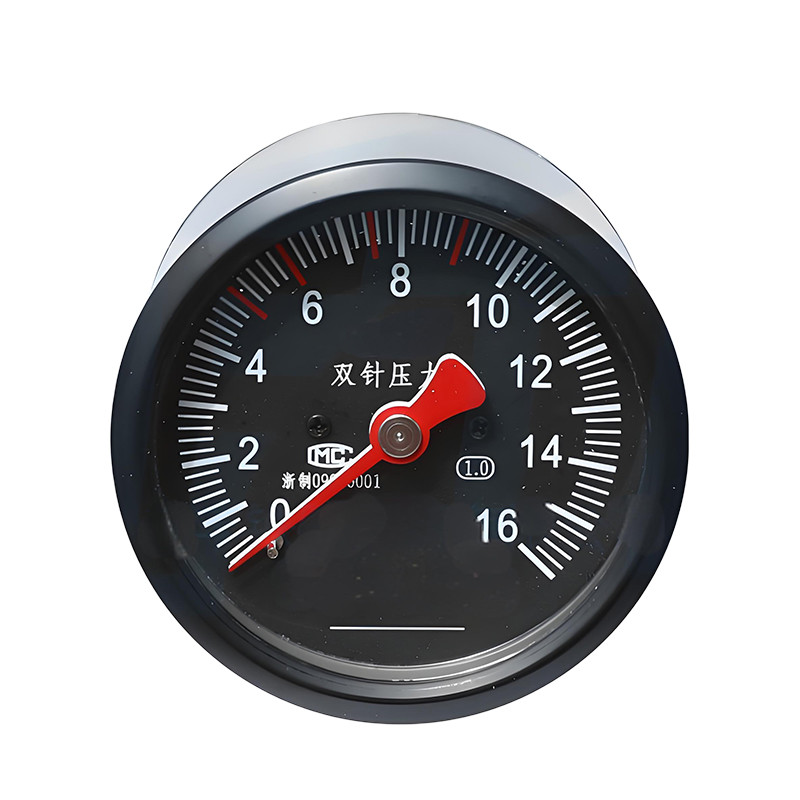

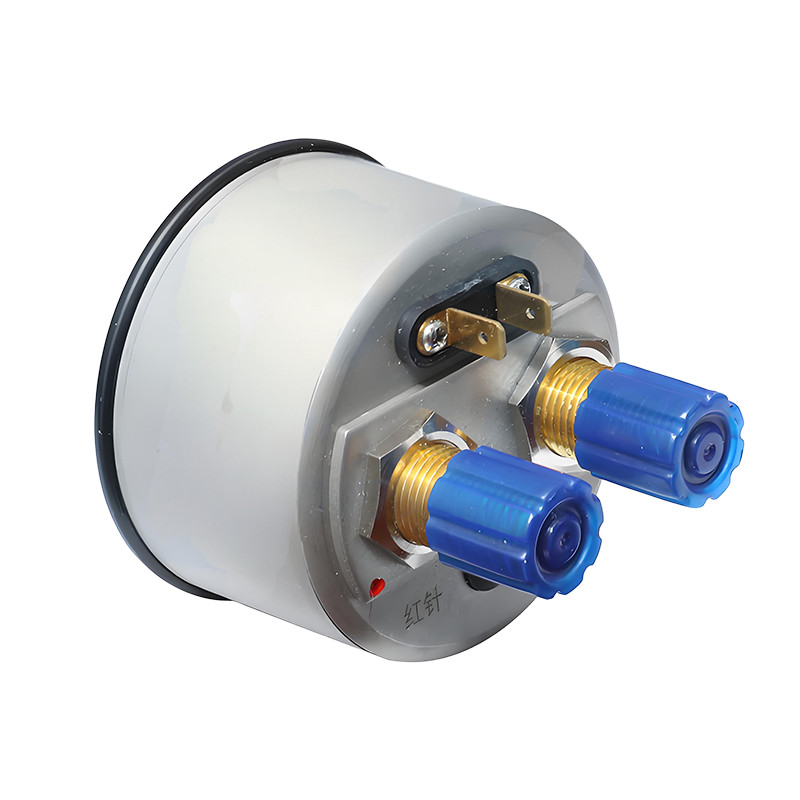

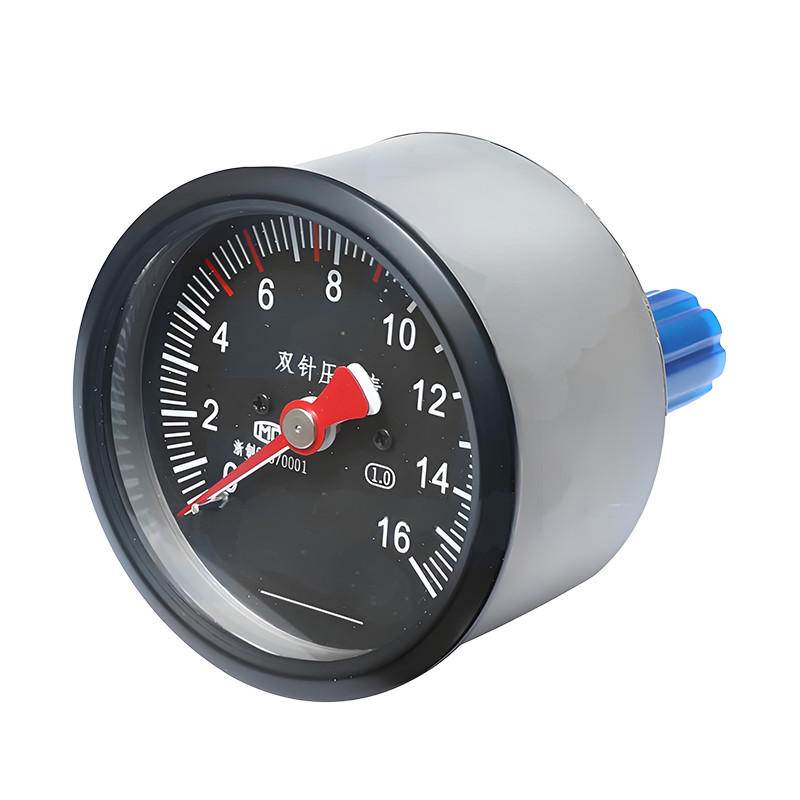

Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HTS-80Z-1 |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Measuring Range | 0 ~ 1600 kPa | Accuracy Class | Class 1.0 |
|---|---|---|---|
| Operating Temperature | -40°C to +70°C, with relative humidity not exceeding 95% | Temperature Influence | When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C |
| Illumination Voltage | DC 24V ±20% | Dielectric Strength | 1500V / 50Hz, duration 1 minute |
| 강조하다 | HTS-80Z-1 Dual-needle Pressure Gauge,Locomotive Measuring Pressure Gauge,HTS-80Z-1 Pressure Gauge |
||
제품 설명
Products Description
The dual-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its working principle is based on the deformation of a Bourdon tube under the action of medium pressure. This deformation is transmitted and amplified through a mechanical linkage, which drives the pointer to deflect along the dial scale, indicating the measured pressure value.
This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a soft LED ring light positioned at the upper part of the dial, providing gentle illumination to facilitate clear reading during night-time operation.
Specification
|
Item |
Specification |
|
Measuring Range |
0 ~ 1600 kPa |
|
Accuracy Class |
Class 1.0 |
|
Operating Temperature |
-40°C to +70°C, with relative humidity not exceeding 95% |
|
Temperature Influence |
When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C |
|
Illumination Voltage |
DC 24V ±20% |
|
Dielectric Strength |
1500V / 50Hz, duration 1 minute |
|
Standard Compliance |
Complies with GB/T 1226-2010 (General Pressure Gauge Standard) |
