Locomotive Precision Instrumentation HTM100-Aq Stepper Motor Speedometer
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HTM100-Aq |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Accuracy | 0.015 | Speed Range | 0–100 / 0–120 / 0–160 km/h (customizable upon request) |
|---|---|---|---|
| Operating Voltage | DC 110V | Input Signal | 7/14 mA current pulse signal |
| Internal Illumination | DC 110V LED backlight | Power Supply to External Sensor | 15VDC (2-wire) |
| Dielectric Strength | Power terminal: AC 1000Vrms, 50Hz, 1 minute; Signal terminal: AC 1000Vrms, 50Hz, 1 minute | Operating Temperature | -25°C to +70°C |
| Weight | Approx. 350 g | ||
| 강조하다 | Locomotive Stepper Motor Speedometer,Locomotive Precision Instrumentation Speedometer,HTM100-Aq Stepper Motor Speedometer |
||
제품 설명
Products Description

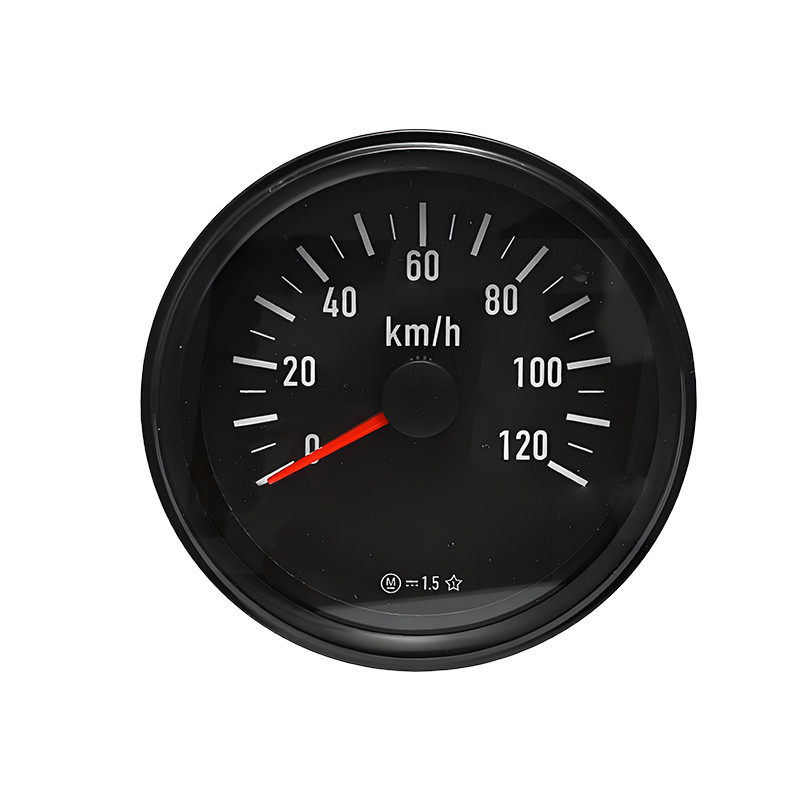

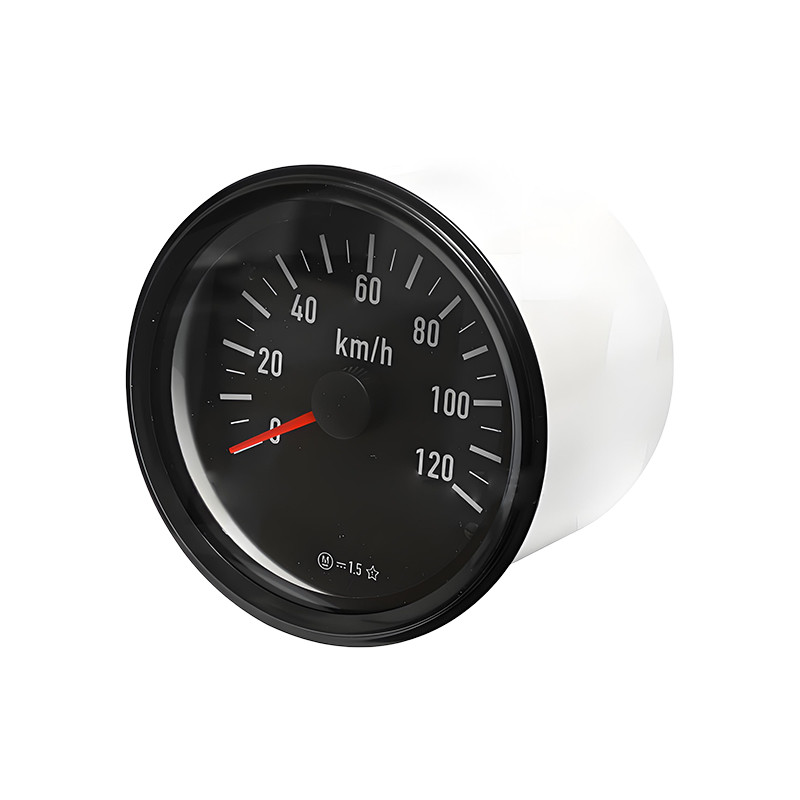

The HTM100-Aq is a precision speedometer driven by a stepper motor, designed to display real-time rotational speed in rail transit and industrial applications. It supports 7 mA / 14 mA current pulse signal input, offering high compatibility with both domestic and international locomotive systems.
The instrument features a robust structure, excellent shock resistance, and long service life. It ensures smooth pointer movement, high accuracy, and fast response, even under harsh operating conditions.
This speedometer is widely applicable to various types of locomotives and vehicles, providing stable and reliable speed indication in metro systems, EMUs, and heavy-duty rolling stock.
Specification
|
Item |
Specification |
|
Accuracy |
0.015 |
|
Speed Range |
0–100 / 0–120 / 0–160 km/h (customizable upon request) |
|
Operating Voltage |
DC 110V |
|
Input Signal |
7/14 mA current pulse signal |
|
Internal Illumination |
DC 110V LED backlight |
|
Power Supply to |
15VDC (2-wire) |
|
Dielectric Strength |
Power terminal: AC 1000Vrms, 50Hz, 1 minute; Signal terminal: AC 1000Vrms, 50Hz, 1 minute |
|
Operating Temperature |
-25°C to +70°C |
|
Vibration Resistance |
Complies with GB/T 25119-2010 |
|
Electrical Surge Protection |
Meets EN 50121-3-2: 2006(8) standard |
|

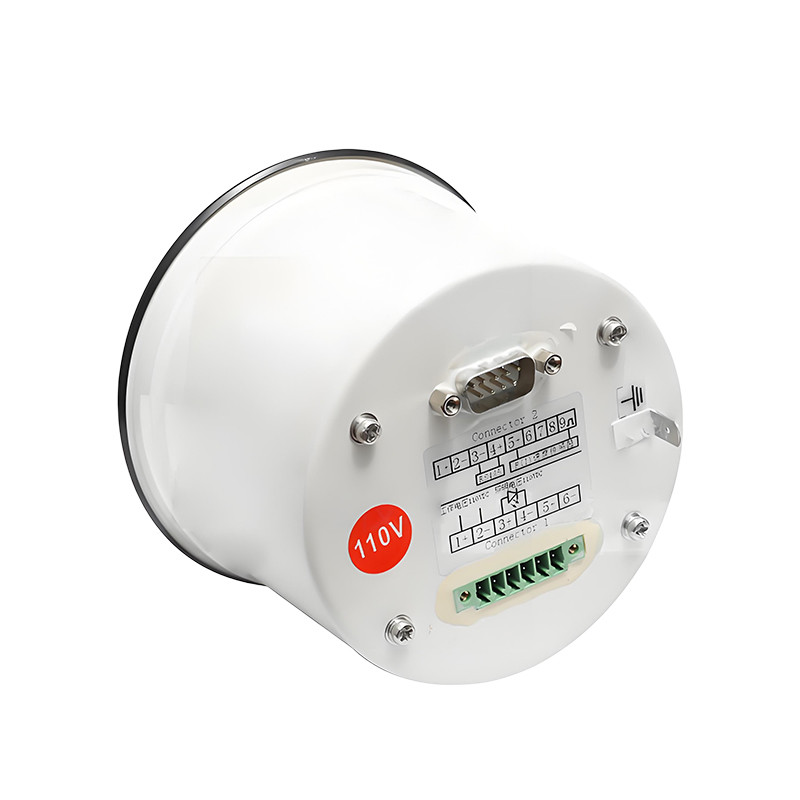

Connector Type |
6-pin PHOENIX terminal block; 9-pin DSUB-9 plug |
|
Weight |
Approx. 350 g |
