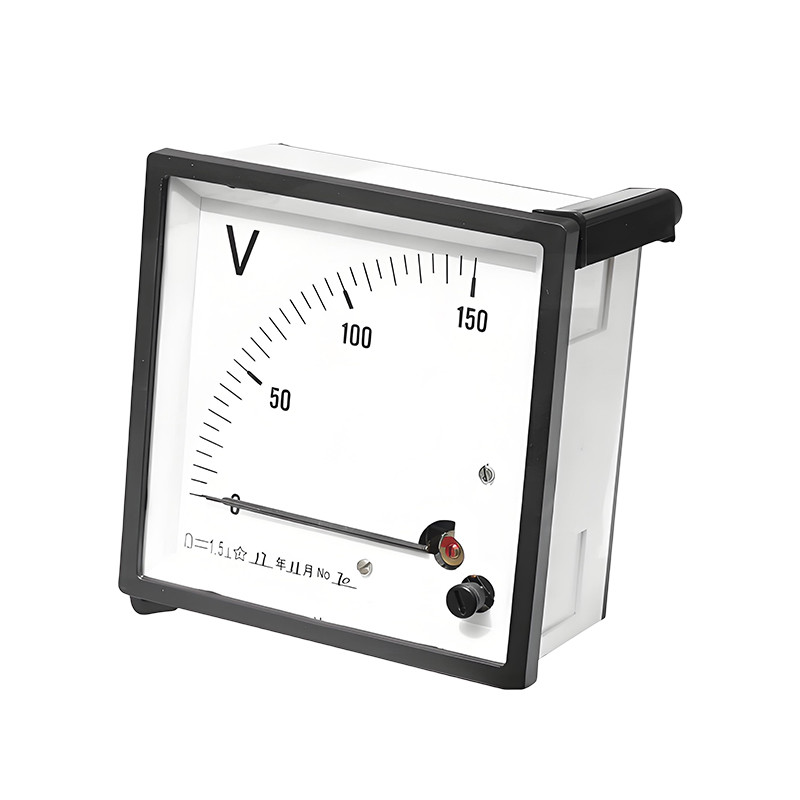

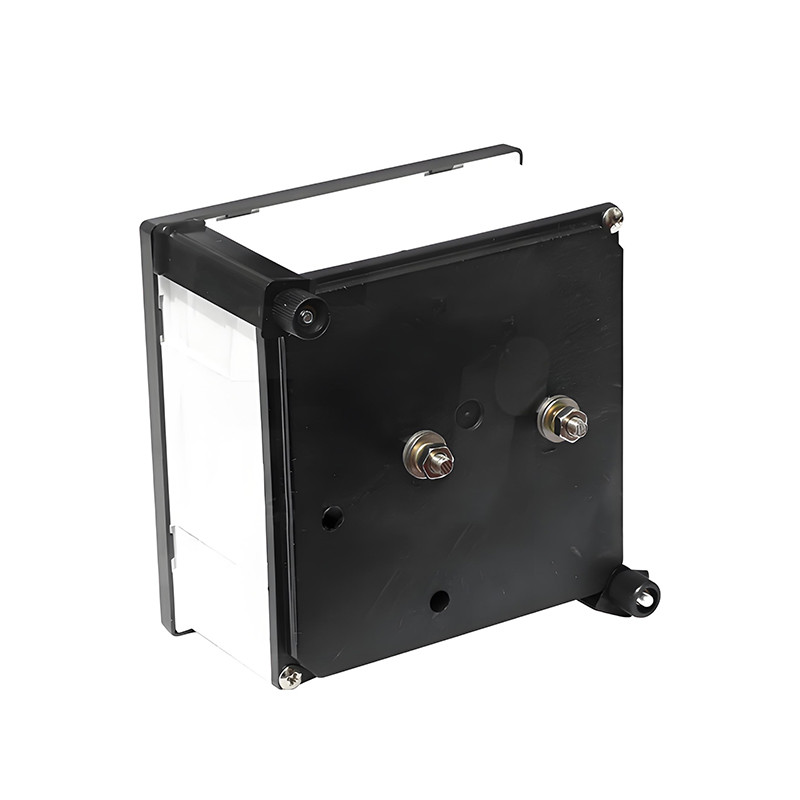

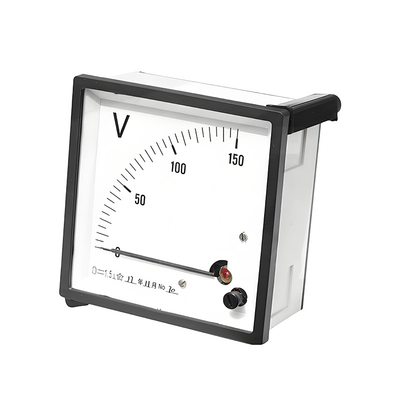

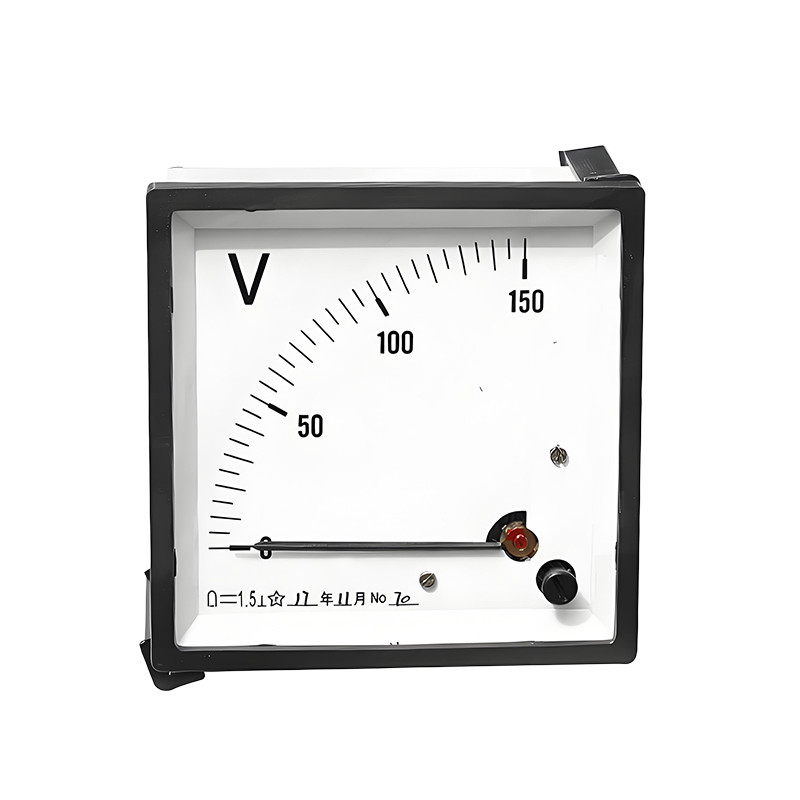

Railway Vehicle Locomotive Instrumentation HT15 Battery Voltmeter
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HT15 |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Accuracy Class | Class 1.5 / Class 2.5 | Operating Conditions | -20°C to +50°C; Relative humidity ≤ 85% |
|---|---|---|---|
| 강조하다 | HT15 Battery Voltmeter,Locomotive Battery Voltmeter,Railway Vehicle Battery Voltmeter |
||
제품 설명
Products Description
This product series includes both moving-coil (magnetoelectric) and moving-iron (electromagnetic) type instruments. They are designed for installation on display panels and large switchboards in various control and power distribution systems. These instruments are used to indicate a wide range of electrical parameters, including AC/DC current, voltage, power factor, active and reactive power, synchronization values, frequency, expanded voltage, and overload current.
The performance and reliability of the products comply with the GB 7676-98 standard for analog electrical measuring instruments, ensuring stable operation and long service life in industrial and railway applications.
Specification
|
Item |
Specification |
|
Accuracy Class |
Class 1.5 / Class 2.5 |
|
Operating Conditions |
-20°C to +50°C; Relative humidity ≤ 85% |
|
Voltage Influence |
When the supply frequency changes by ±15% from the rated value, the indication |
|
Mechanical Performance |
Withstands acceleration of 30 m/s², impact frequency of 80–120 times/min, |
|
Mounting Position |
Vertical use only |
