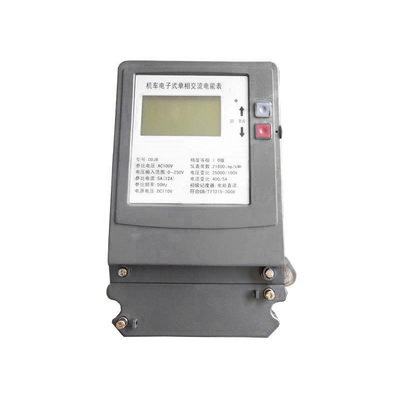

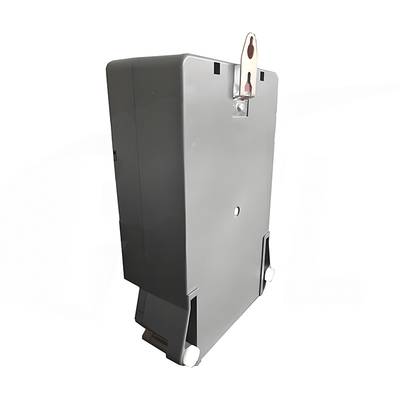

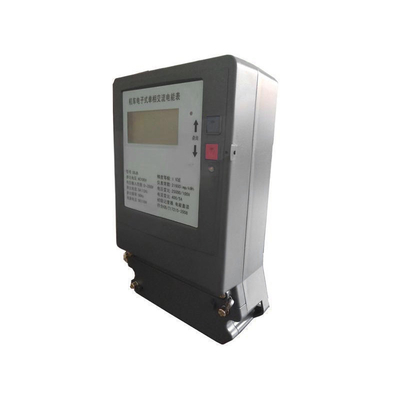

5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HTJB |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Rated Voltage | 110 VAC | Voltage Input Range | 0–150 VAC |
|---|---|---|---|
| Rated Current | 5 A (maximum input current: 12 A) | Power Supply Voltage | 110 VDC |
| Reference Frequency | 50 Hz | Meter Constant | 6400 imp/kWh |
| Power Consumption | ≤ 4 VA | Display Type | LCD display |
| 강조하다 | 50Hz Locomotive Energy Meter,Electronic Locomotive Energy Meter,5A Rated Current Locomotive Energy Meter |
||
제품 설명
Products Description
The electronic single-phase AC energy meter is a fully digital device designed for accurate measurement of both forward and reverse active and reactive energy in single-phase AC systems. In addition to precise energy metering, the device supports intelligent energy management based on crew dispatch or duty cycles, making it well-suited for applications in locomotives and rail vehicles.
With its fully electronic architecture, the meter offers high reliability, stable performance, and resistance to electromagnetic interference. It enables real-time monitoring and efficient energy usage tracking, contributing to operational safety and cost-effective power management in modern railway systems.
Specification
|
Item |
Specification |
|
Rated Voltage |
110 VAC |
|
Voltage Input Range |
0–150 VAC |
|
Rated Current |
5 A (maximum input current: 12 A) |
|
Power Supply Voltage |
110 VDC |
|
Reference Frequency |
50 Hz |
|
Meter Constant |
6400 imp/kWh |
|
Voltage Ratio |
25000/100 |
|
Current Ratio |
400/5 |
|
Accuracy Class |
Active energy: Class 1.0; Reactive energy: Class 2.0; |
|
Starting Current |
0.02 Ib |
|
Power Consumption |
≤ 0.1 W |
|
Power Consumption |
≤ 4 VA |
|
Display Type |
LCD display |
|
Meter Type |
Primary energy meter with direct reading |
|
Maximum Cumulative |
124,275,677 kWh |
