Locomotive Instrument HTS2 Dual-needle Network Pressure Gauge
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HTS2 |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Accuracy Class | Class 1.5 (Class 2.5 when used with sensors) | Operating Environment | -20°C to +50°C |
|---|---|---|---|
| Relative Humidity | ≤ 95% | Damping Time | < 4 seconds |
| External Magnetic Field Resistance | 4 kA/m | Vibration Resistance | 30 m/s² |
| Illumination Power Supply | DC 24V or DC 110V | Protection Type | Dustproof |
| Weight | Approx. 1 kg | Dimensions | 64 mm (W) × 146 mm (H) × 152 mm (D) |
| 강조하다 | Locomotive Network Pressure Gauge,Dual-needle Network Pressure Gauge,HTS2 Network Pressure Gauge |
||
제품 설명
Products Description

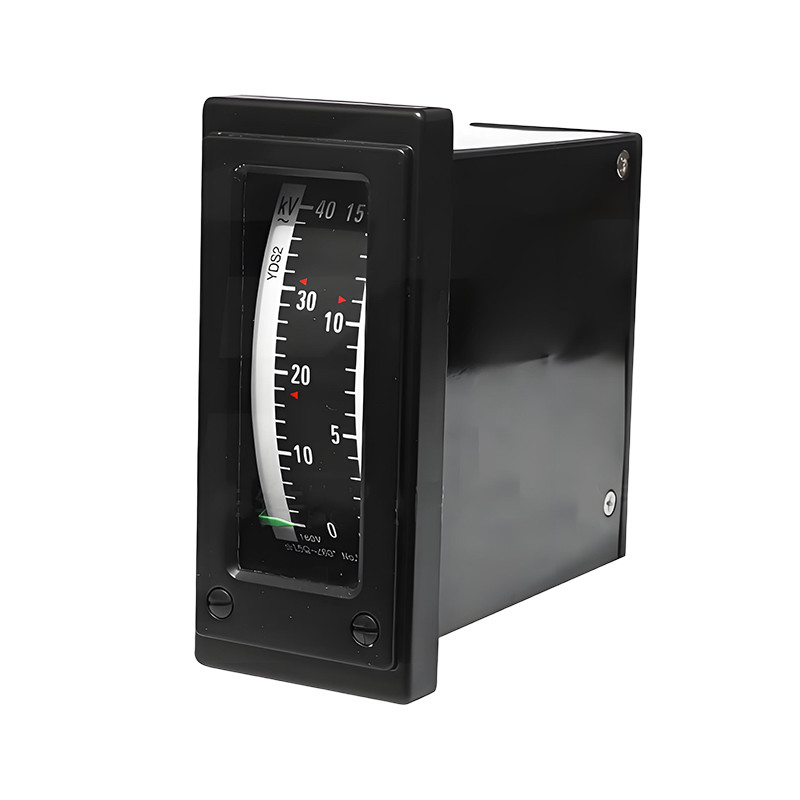

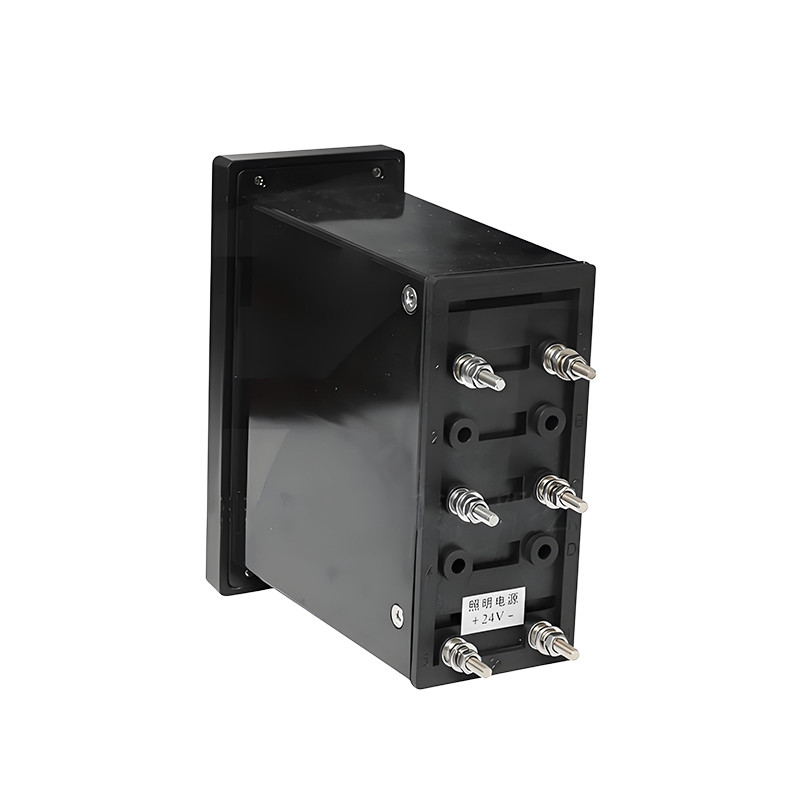

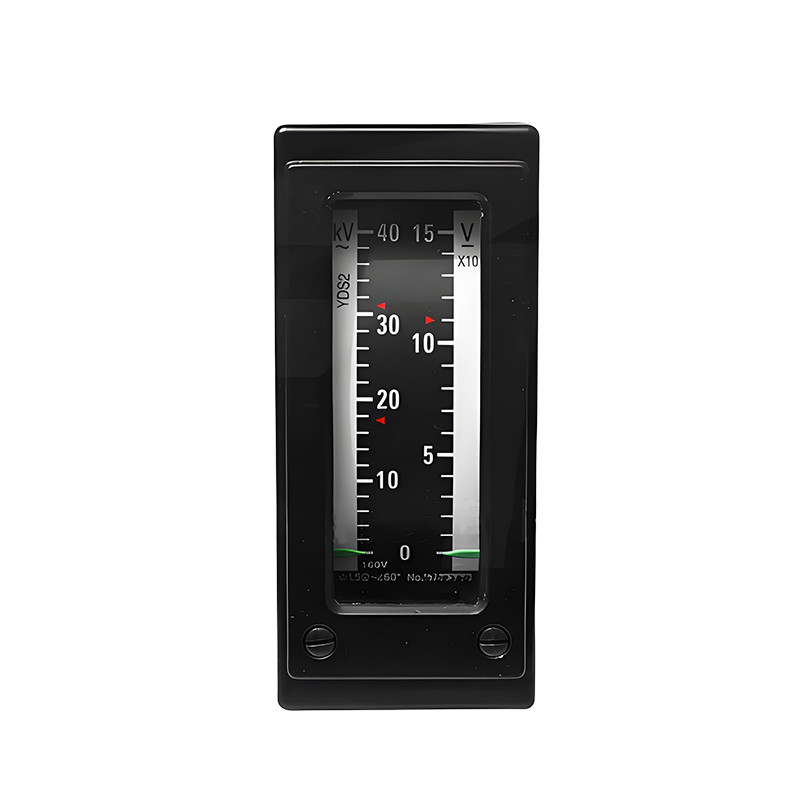

The HTS2 Dual-Needle Locomotive Instrument is a panel-mounted analog gauge designed for diesel-electric locomotives. It integrates multiple functions—such as current, voltage, sp eed, temperature, and pressure measurement—into one compact, reliable unit. Built with a magnetoelectric mechanism and a durable phenolic resin housing, it offers high accuracy, good linearity, and strong resistance to shock, vibration, and external magnetic fields. The instrument features reverse polarity protection, soft lighting, and long service life, making it ideal for harsh railway environments.
Specification
|
Item |
Specification |
|
Accuracy Class |
Class 1.5 (Class 2.5 when used with sensors) |
|
Operating Environment |
-20°C to +50°C |
|
Relative Humidity |
≤ 95% |
|
Damping Time |
< 4 seconds |
|
External Magnetic |
4 kA/m |
|
Vibration Resistance |
30 m/s² |
|
Illumination Power |
DC 24V or DC 110V |
|
Protection Type |
Dustproof |
|
Weight |
Approx. 1 kg |
|
Dimensions |
64 mm (W) × 146 mm (H) × 152 mm (D) |
