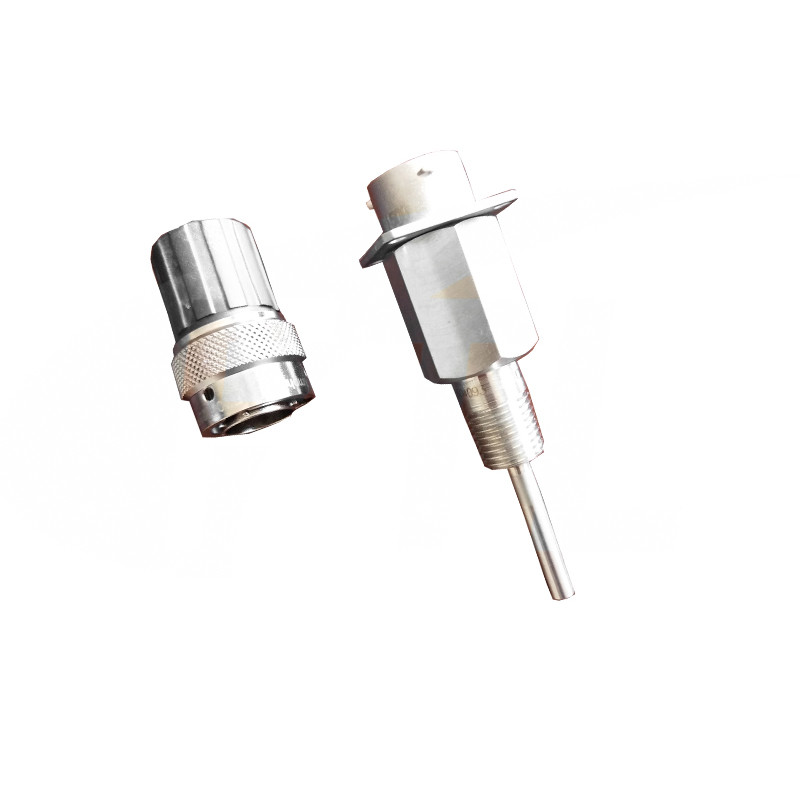

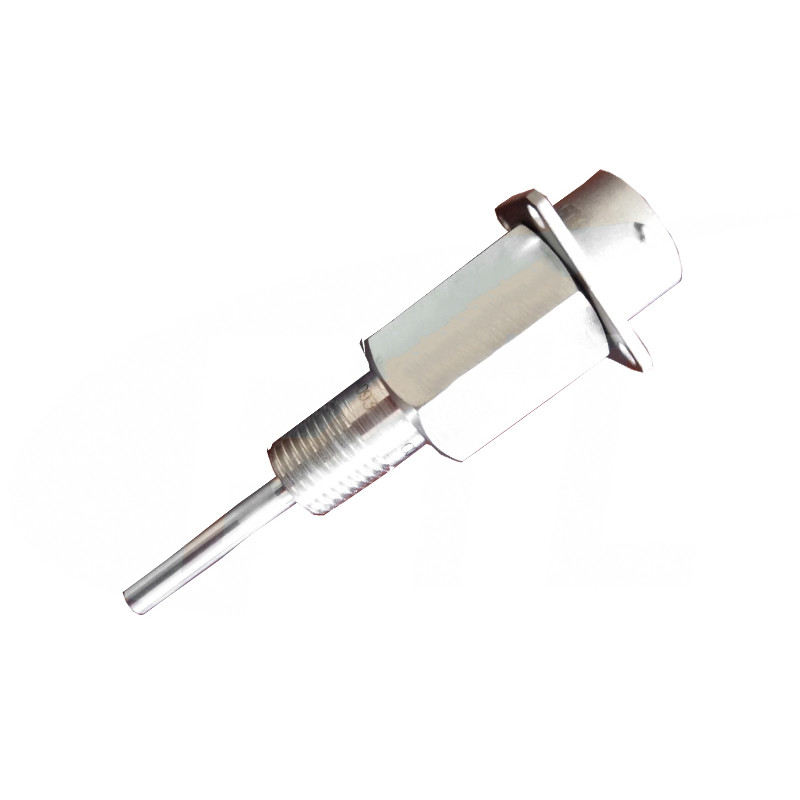

Locomotive Instrumentation Part HT-1000 Temperature Transmitter
| Place of Origin | China |
|---|---|
| 브랜드 이름 | HTR |
| Model Number | HT-1000 |
| Minimum Order Quantity | 10pcs |
| 가격 | 협상 가능 |
| Packaging Details | Carton box, Wooden case, as per requires |
| Delivery Time | 15-50 days, depends on QTY |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1,000 pcs/month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Accuracy | 0.5% | Measurement Range | -50°C to +150°C |
|---|---|---|---|
| Output | 4–20mA DC, linear with temperature, two-wire transmission | Power Supply Voltage | 7.5–30VDC, nominal 24VDC |
| Temperature Drift | 0.02% FS/°C | Load Capacity | 0–600Ω |
| Operating Temperature | -50°C to +150°C | Relative Humidity | 5–95%, non-condensing |
| Stability | Output change ≤ 1% within 12 months | ||
| 강조하다 | Locomotive Instrumentation Part,HT-1000 Temperature Transmitter,Locomotive Instrumentation Part Temperature Transmitter |
||
제품 설명
Products Description
The HT-1000 Temperature Transmitter consists of a resistance temperature detector (RTD) and a transmitter circuit module. It adopts a two-wire system, meaning a single pair of wires serves both as the power supply and signal transmission line. Equipped with a non- linear correction circuit, the HT1000 can measure temperatures ranging from -50°C to +150 °C in various industrial media.It converts the temperature signal into a linear 4–20mA DC current output, which can be transmitted to display units, controllers, recorders, or DCS systems for centralized monitoring and control.
The HT-1000 is widely used in the rail transit industry and can be integrated with analog gauges, digital displays, recorders, regulators, and DCS systems to form comprehensive temperature measurement and control systems.
Specification
|
Item |
Specification |
|
Accuracy |
0.5% (including linearity, hysteresis, and repeatability) |
|
Measurement Range |
-50°C to +150°C |
|
Output |
4–20mA DC, linear with temperature, two-wire transmission |
|
Power Supply Voltage |
7.5–30VDC, nominal 24VDC |
|
Temperature Drift |
0.02% FS/°C (due to ambient temperature variation) |
|
Load Capacity |
0–600Ω (with 24VDC power supply) |
|
Operating Temperature |
-50°C to +150°C (high-temperature version) |
|
Relative Humidity |
5–95%, non-condensing |
|
Stability |
Output change ≤ 1% within 12 months |
