ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
| 원래 장소 | 중국 충칭 |
|---|---|
| 브랜드 이름 | XRD |
| 최소 주문 수량 | 2 |
| 가격 | $1,370-1,400 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 전력 전압 | 3 상 AC 380V/50Hz | 스트로크 | 220/170/150mm |
|---|---|---|---|
| 평가 된 던지기 힘 | 2.5 kN -4.5 kN | 트레일 가능한 힘 | 28 ± 2kn |
| 던지기 시간 | ≤ 8s | 작업 경향 | ≤2.0A |
| 단일 라인 저항 | ≤ 54Ω | 단열성 저항 | > 25mΩ |
| 절연 전압 견딜 수 있습니다 | 50Hz | 기압 | ≥70kpa (고도 3000m를 초과하지 않음) |
| 주변 온도 | -40 7 +70 ℃ | 상대 습도 | ≤90%(25℃) |
| 서비스 수명 | 운동을 던지는 1 백만 번 (또는 15 년) | 무게 | 140kg |
| 강조하다 | ZDJ9 railway electric switch machine,380V railway track switch,2.5-4.5 kN force switch machine |
||
제품 설명
Excellent Performance Railway ZD9/ZDJ9 Series Electric Switch Machine
Product Attributes
| Attribute | Value |
|---|---|
| Purpose | for retrofit/upgrade |
| Condition | New |
| Type | Electric Switch Machine |
| Material | Steel |
| Dimensions (L x W x H) (mm) | Customized |
| Product Name | Electric Switch Machine |
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | >25MΩ |
| Insulation Voltage Withstand | 50Hz |

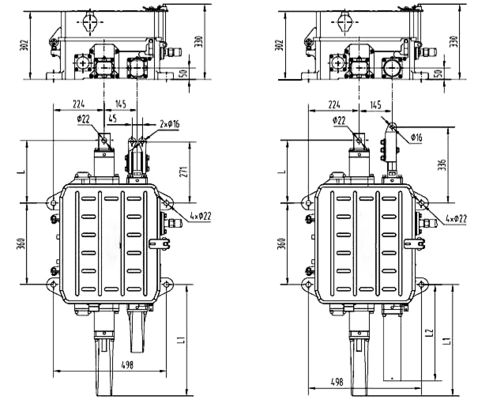

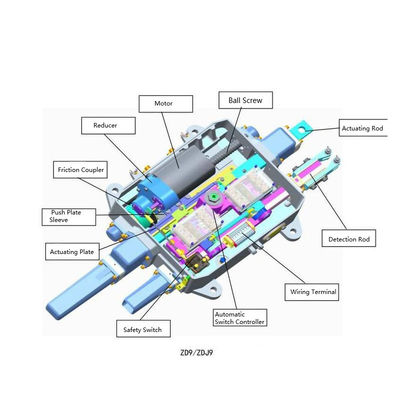

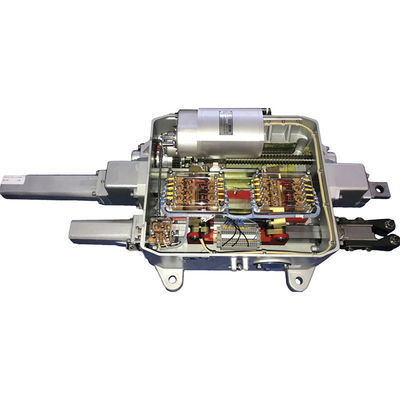

Product Images
Technical Specifications
| Product Performance | Reference Value |
|---|---|
| Power Voltage | Three-phase AC 380V/50Hz |
| Strokes | 220/170/150mm |
| Rated Throwing Force | 2.5 kN - 4.5 kN |
| Trailable Force | 28±2KN |
| Throwing Time | ≤ 8s |
| Work Current | ≤2.0A |
| Single-line Resistance | ≤ 54Ω |
| Insulation Resistance | ＞25MΩ |
| Insulation Voltage Withstand | 50Hz |
| Protection Class | IP54-IP67 |
| Atmospheric Pressure | ≥70KPa (altitude not exceeding 3000m) |
| Ambient Temperature | -40℃～ +70℃ |
| Relative Humidity | ≤90%（25℃） |
| Service Life | The point machine meets the requirement of 1 million times of throwing movement (or 15 years) under the condition of regular maintenance |
| Weight | The whole machine weight about 140kg |
Product Description
ZDJ9 series switch point machines are suitable for the setting, locking and indication of various railway switches. It can be used by single machine or multiple machines. It can be used for an internal-locking switch or an external-locking switch. ZDJ9 series point machines only refer to the structure and accessories installed in the housing which can complete the action of throw bar, pull-in conversion and lock, excluding installation device. Installation device is a set of parts for installing the point machine and connecting the point machine with the movable parts of the switch.
For the railway with the speed above 120kph, ZD9/ZDJ9 point machine shall be equipped with external locking device.

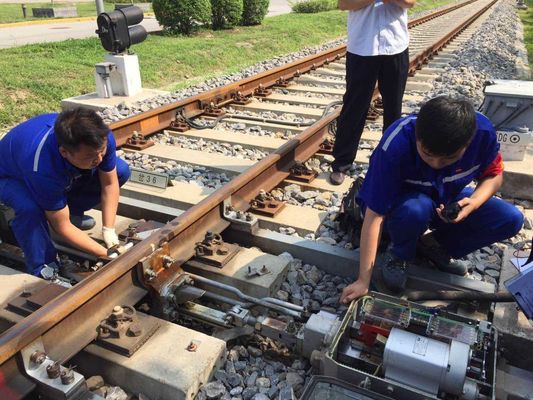

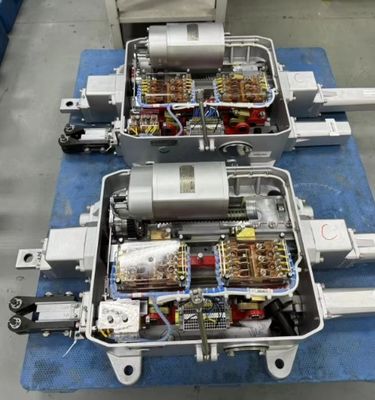

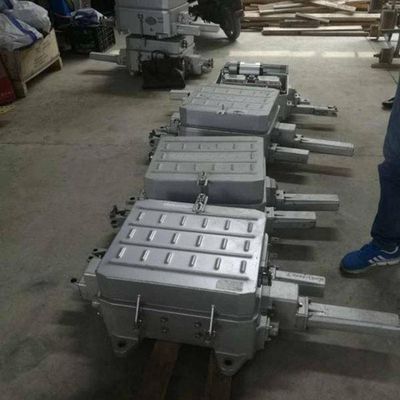

Additional Product Images
