1435MM Mechanical Digital Track Gauge
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HTR |
| 최소 주문 수량 | 1000 |
| 가격 | Ngotiable |
| 포장 세부 사항 | 수출 포장 |
| 배달 시간 | 고티러블 |
| 지불 조건 | l/c, t/t |
| 공급 능력 | 한 달에 50000 PC |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 제품 이름 | 디지털 트랙 게이지 | 트랙 게이지 | 1384-1470mm |
|---|---|---|---|
| 레일 게이지를 확인하십시오 | 1364-1450mm | 연속 거리 | 1344-1430mm |
| 플랜지 웨이 클리어런스 | 20-107mm | 캔트 | -200-+200mm |
| 디스플레이 화면 | OLED | 전력 전압 | DC3.4V ~ 5.2V (충전식 배터리) |
| 작업 온도 범위 | -30 ℃～+55 ℃ | 절연 성능 | 1MΩ |
| 무게 | ≤3kg | ||
| 강조하다 | 1435mm mechanical track gauge,digital railway track gauge,railway track gauge with warranty |
||
제품 설명
Product Description

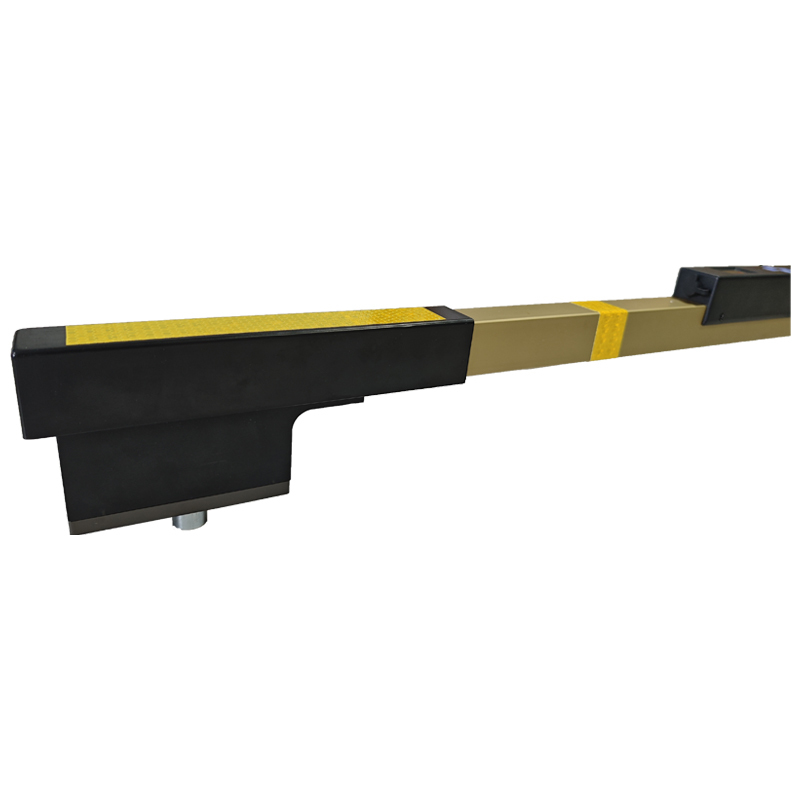

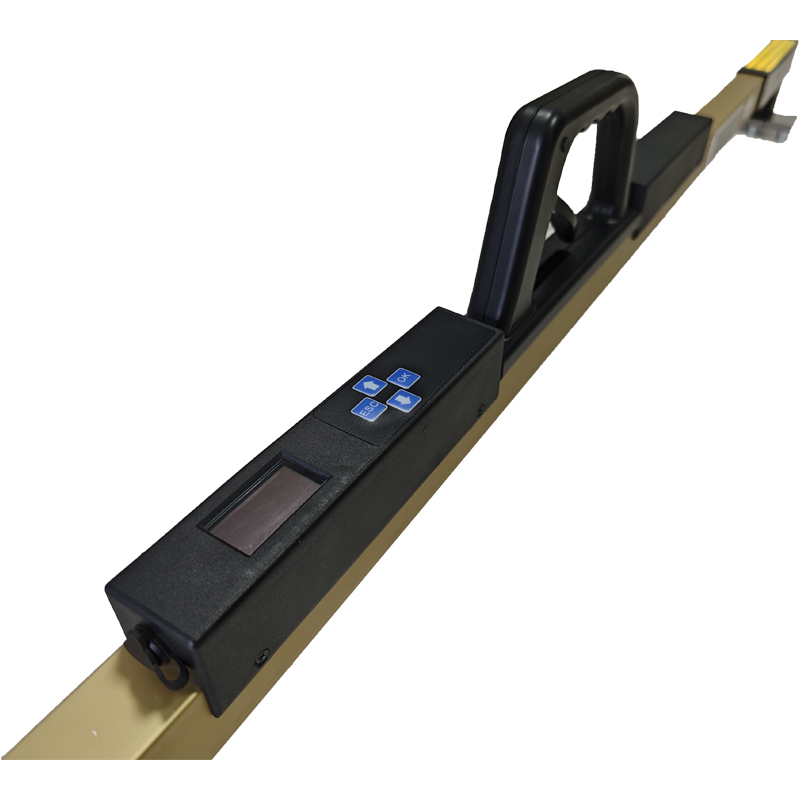

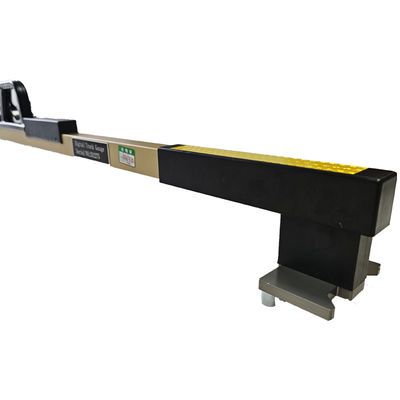

The T type digital track gauge is mainly used to measuring the track gauge ,cant, check rail gauge , back to back distance and flangeway clearance. The device is easy to operate ,and its measuring speed is very fast , which can be used either day or night. It is an ideal measurement tool for the railway engineers.
Product Performance Feature
Our digital track gauge is a high-precision railway inspection tool ,which developed according to the current railway situation of all weather, complex railway line , large temperature difference etc., It is composed of electronic and mechanical parts, the electronic part is integrated by microelectronic technology, single-chip technology, sensing technology, signal processing technology and other high-tech .This product has the following features:
· Stable performance and anti-electromagnetic interference: suitable for electrification, non-electrification, automatic block or other block section.
· Fast measurement speed: When used, the measured data can be displayed without additional manual operation after the measuring point is confirmed.
· High measuring accuracy: Precision transmission device with intelligent data processing system, it can be fast calibration. The built-in temperature compensation eliminates the material thermal expansion and cold contraction on the track gauge and super elevation measurement data, which improved the measurement accuracy.
· Large OLED display: the new light-emitting OLED material is adopted. Even in strong sunlight, the
measurements are still clear and intuitive. The characteristics of the instrument are particularly prominent when it is used at night or in tunnels.
· Wide temperature range: -30℃ ~ +55℃ ,it can meet the temperature requirements in most areas.
· Quick calibration operation: simple measurement process.
· Power saving function: no operation within 15 minutes, the system will automatically shut down.
· Large capacity battery: long standby time
· Insulated design
· Waterproof: could use in rainy day
|
Product Performance |
Reference Value |
|
Scope of Use |
1435mm standard gauge railway with operating speed ≤ 250 km/h |
|
Track Gauge |
1384-1470mm |
|
Measurement Uncertainty |
±0.25mm |
|
Check Rail Gauge |
1364-1450mm |
|
Back-to-back Distance |
1344-1430mm |
|
Flangeway Clearance |
20-107mm |
|
Cant |
-200-+200mm |
|
Measurement Uncertainty |
±0.45mm |
|
Display Screen |
OLED |
|
Power Voltage |
DC3.4V～5.2V(Rechargeable Battery) |
|
Working Temperature Range |
-30℃～+55℃ |
|
Insulation Performance |
＞1MΩ |
|
Weight |
≤3kg |
