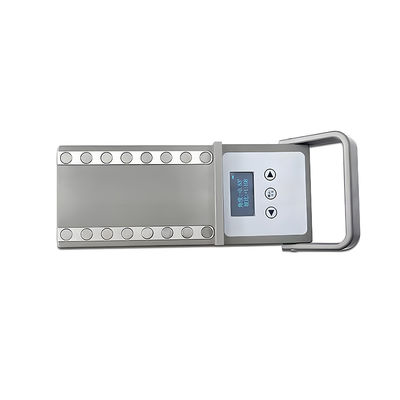

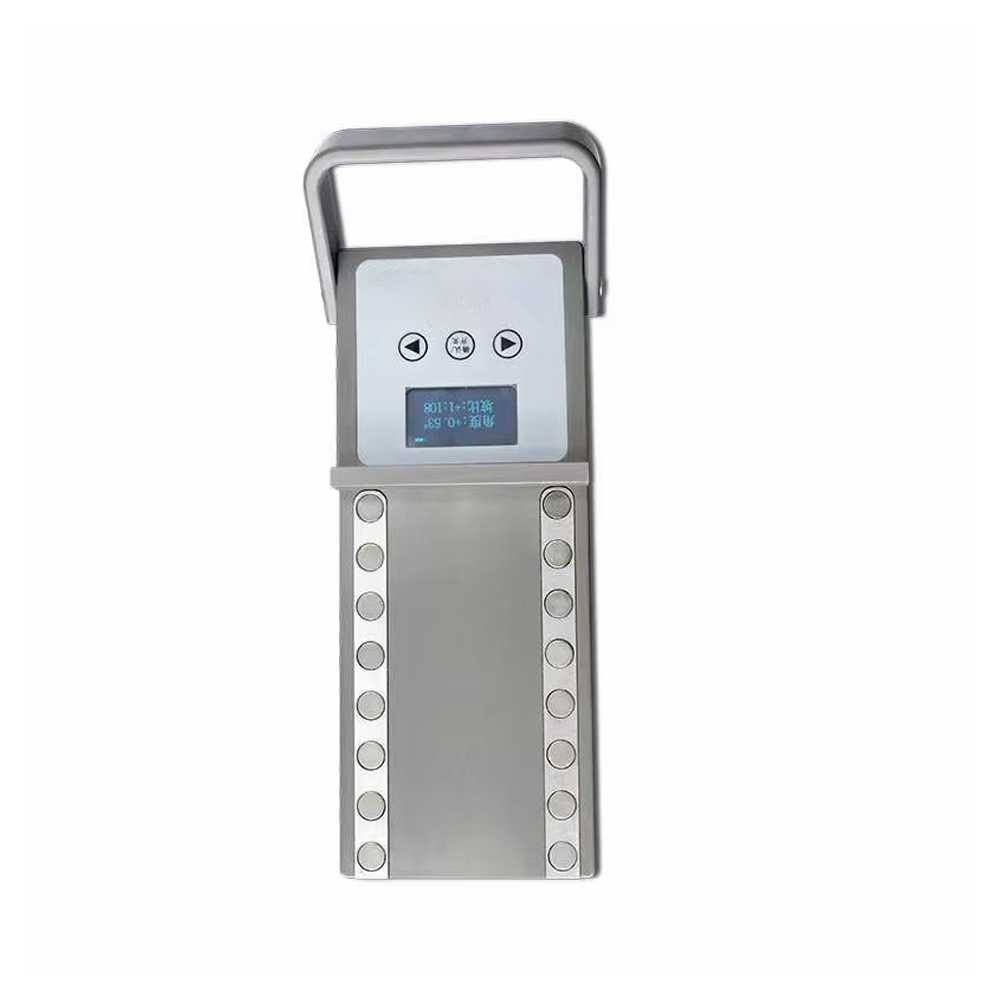

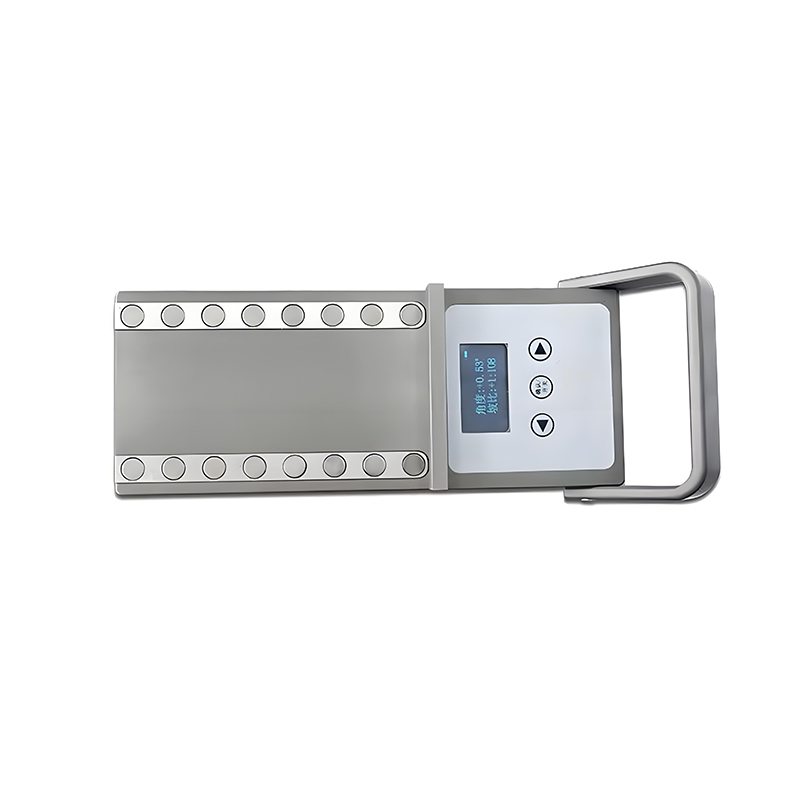

Railway Tools Digital Display Rail Cant Measurement Device
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HTR |
| 최소 주문 수량 | 1000 |
| 가격 | Ngotiable |
| 포장 세부 사항 | 수출 포장 |
| 배달 시간 | 고티러블 |
| 지불 조건 | 신용장, 티/티 |
| 공급 능력 | 한 달에 50000 PC |
제품 상세 정보
| 제품명 | 레일 기울기 측정 장치 | 재료 | 알류미늄 |
|---|---|---|---|
| 치수 | 225*90*60mm | 범위를 측정하십시오 | ±1:10 ~±1:200 |
| 힘 | 40mA | 전원 공급 장치 모드 | 내장 리튬 배터리 충전 |
| 작동 온도 | -30°~ +60° | ||
| 강조하다 | digital rail cant measurement device,railway track measurement tool,railway tools with digital display |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명

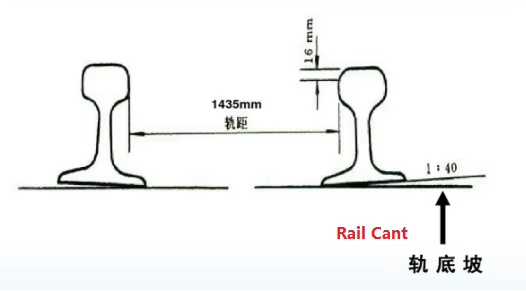

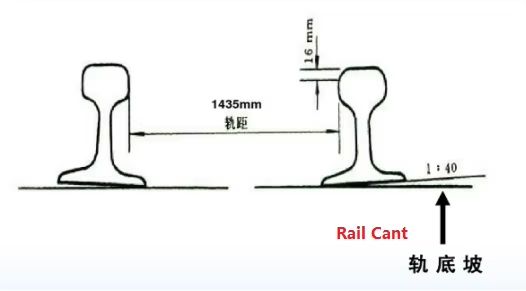

In railway maintenance, the rail cant is a critical parameter that affects rail wear, wheel stability, and overall safety. Traditional methods for measuring rail cant can often be cumbersome and imprecise. To improve the efficiency and accuracy of railway maintenance, we introduce the Digital Display Rail cant Measuring Instrument, which uses digital display technology to provide precise and rapid measurement solutions for rail cant. This helps railway operators and maintenance personnel monitor and adjust rail cant in real time, ensuring safe and efficient train operations.
Product Advantage
· High-Precision Measurement: Utilizing advanced digital sensing technology, it accurately measures the rail cant angle, ensuring reliable data for every measurement, helping you promptly identify and correct track issues.
· Clear Digital Display: The intuitive digital display screen allows for easy reading of measurement data at a glance, enabling operators to quickly obtain results and improve both efficiency and accuracy.
· Easy Operation: With a user-friendly interface and simple controls, the measuring instrument makes the process more convenient, suitable for on-site quick inspections and adjustments, reducing operational complexity.
· Durable Design: Made from high-strength, impact-resistant materials, the instrument is designed to withstand harsh environments, offering superior corrosion and wear resistance to ensure long-term stable operation.
· Wide Application: Ideal for all types of railway lines, particularly those with high demands for rail bottom slope accuracy, such as passenger, freight, and heavy-haul railways, ensuring track stability and safe operation.
|
Product Performance |
Reference Value |
|
Type |
Rail Inclination Measuring Device |
|
Material |
Aluminium |
|
Dimensions (L x W x H) (mm) |
225*90*60mm |
|
Measure Range |
±1:10 ~±1:200 |
|
Power |
40mA |
|
Power Supply Mode |
Built-in lithium battery charging |
|
Working Temperature |
-30°~ +60° |
