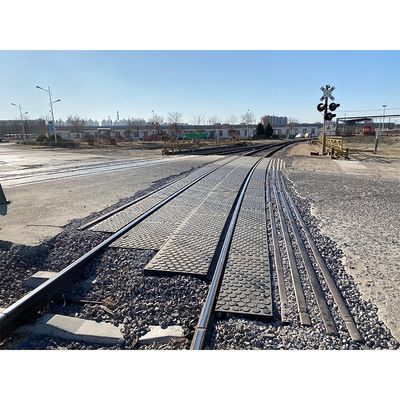

Customizable Black Rubber Level Crossing Panel P50 P60 for Rail Construction
| 원래 장소 | 중국 충칭 |
|---|---|
| 브랜드 이름 | XRD |
| 최소 주문 수량 | 20 |
| 가격 | US$250-300 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
whatsapp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 재료 | 고무 | 경도 | 해안 경도 70-90도 |
|---|---|---|---|
| 인장 강도 | ≥180 kg/cm² | 내마모성 | ≤0.2 cm³/1.16kg |
| 온도 범위 | -50 ℃ ~ 100 ℃ | 격리 | ≥10Ω |
| 색상 | 검은색 | 서비스 수명 | 10~15년 |
| 치수 | 사용자 정의 | 모델 | P50/P60 |
| 표면 | 자연스러운 | 유형 | 레벨 건널목 패널 |
| 충격 흡수 | 우수한 | 미끄럼 방지 | 질감 표면 |
| 부식 저항 | 거친 환경을 견딜 수 있습니다 | ||
| 강조하다 | customizable rubber level crossing panel,P50 P60 rail crossing panel,black rubber railway track panel |
||
제품 설명
Railway Grade Crossing Rubber Panel - P50/P60 Models
Product Overview
High-quality vibration absorption black rubber grade crossing panels designed for rail construction applications. These modular panels feature excellent shock absorption, anti-slip properties, and corrosion resistance with a service life of 10-15 years.
Key Specifications
| Attribute | Value |
|---|---|
| Purpose | For replace/repair |
| Type | Level Crossing Panel |
| Material | Rubber |
| Dimensions | Customized (L x W x H in mm) |
| Hardness | Shore hardness 70-90 degrees |
| Color | Black |
| Certification | ISO9001:2015 |
Technical Performance
| Parameter | Value |
|---|---|
| Tensile Strength | ≥180 kg/cm² |
| Wear resistance | ≤0.2 cm³/1.16kg |
| Temperature range | -50℃~100℃ |
| Insulation | ≥10Ω |
Product Features
- Superior shock absorption for smooth vehicle transitions
- Anti-slip textured surface ensures all-weather safety
- Corrosion-resistant to withstand harsh environments
- Modular design enables quick installation/replacement
- Low-maintenance with 10-15 year service life

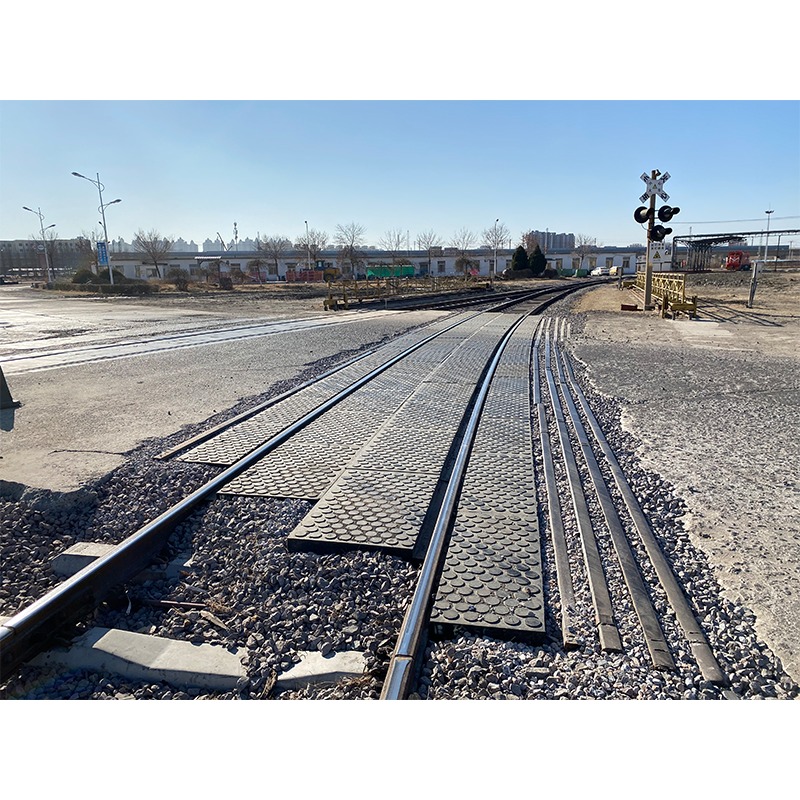

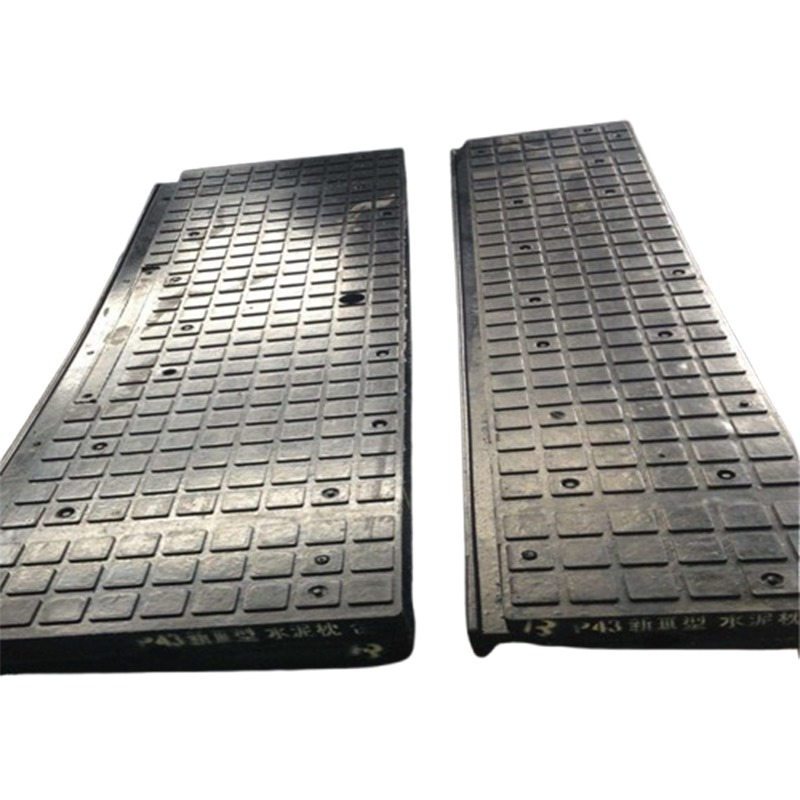

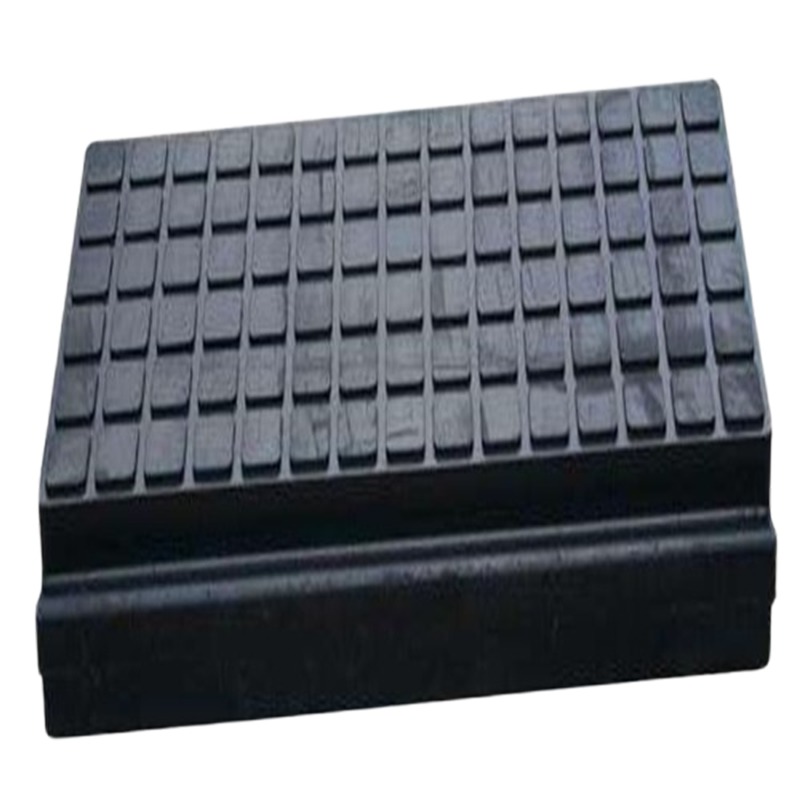

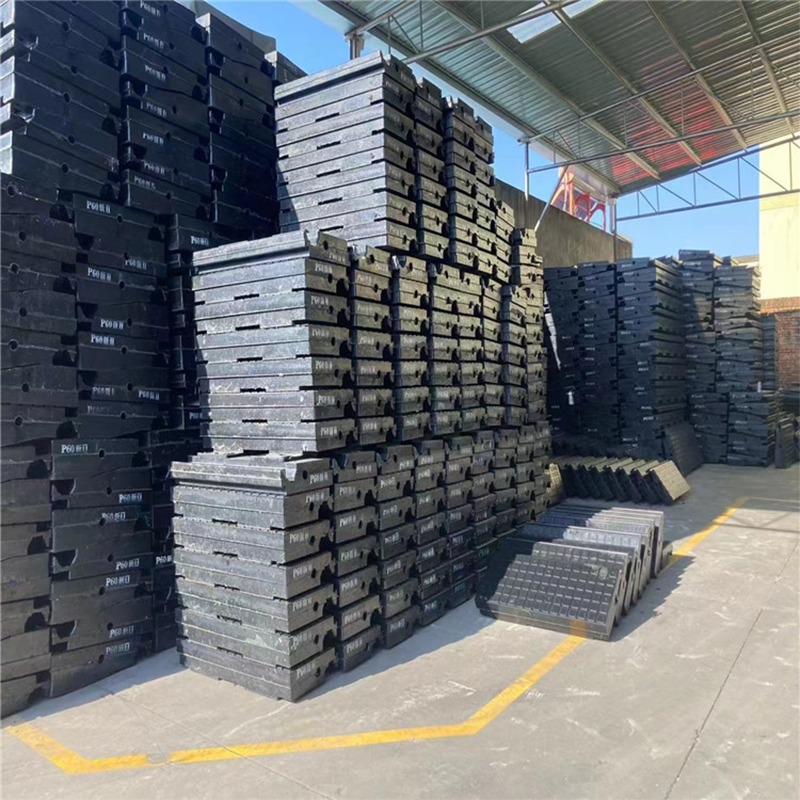

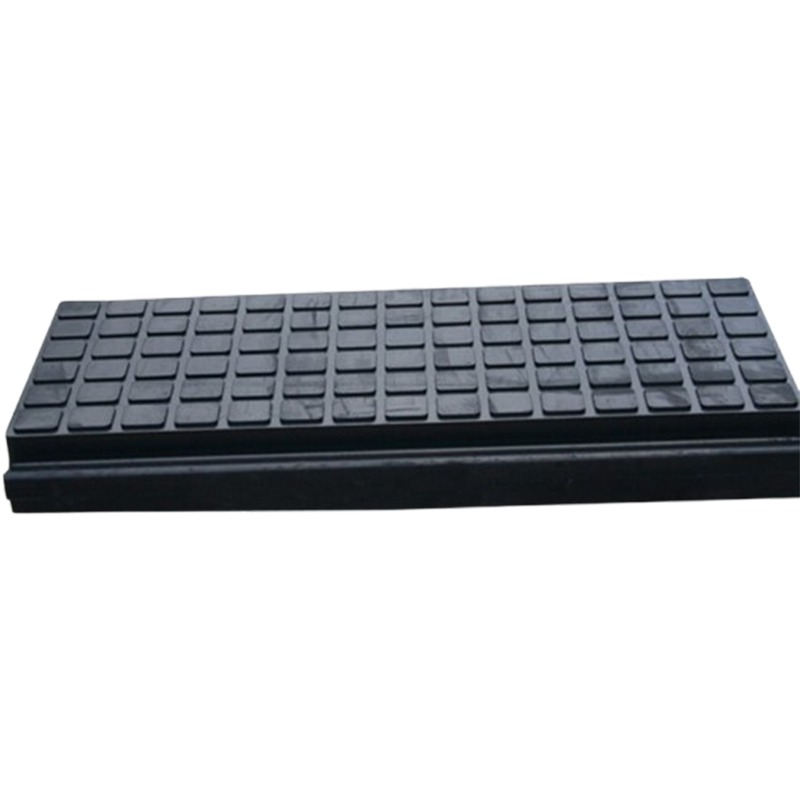

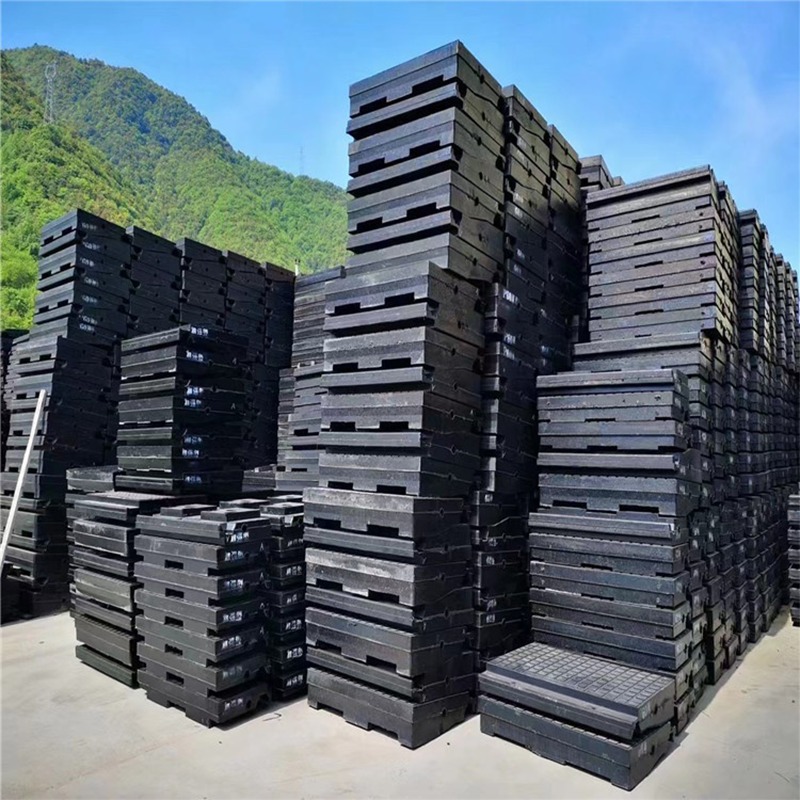

Product Images
About Chongqing XinRail Technology Co., Ltd.
Your trusted partner for premium track accessories, specializing in high-quality products and innovative solutions for the railway industry. Committed to enhancing track system efficiency and safety worldwide.
Our Advantages
- Superior quality control meeting highest standards
- Highly competitive pricing
- Cutting-edge technology solutions
- Expert professional team
- Effective OEM & ODM services
Frequently Asked Questions
What are the main factors to consider when selecting track accessories?
Key factors include compatibility with existing systems, quality standards compliance, durability for environmental conditions, and cost-effectiveness considering long-term performance.
How do you ensure product quality?
Through rigorous testing procedures, sourcing from certified manufacturers, and strict compliance with industry standards and regulations.
Do you offer customized solutions?
Yes, we provide tailored products and solutions to meet specific project requirements through our expert engineering team.
Do you provide technical support?
We offer comprehensive technical support and after-sales service for installation, maintenance, and troubleshooting.
Do you ship internationally?
Yes, we provide international shipping to most countries with shipping costs based on destination and order details.
